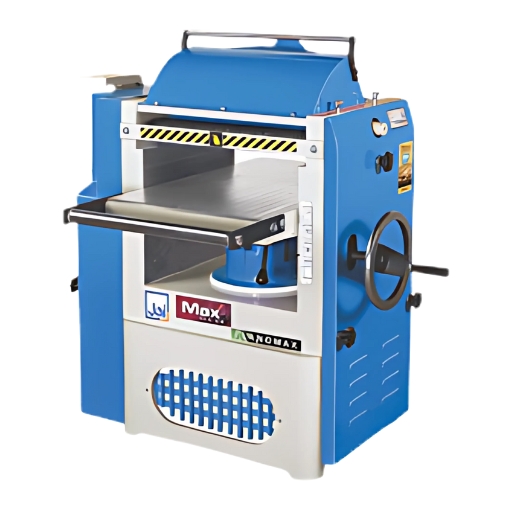

Thickness Planer
Planomax
A premium thickness planer engineered for high-quality finishing and enhanced safety. PlanoMax machines come with a robust anti-kickback mechanism and support up to three interchangeable attachments (drilling, blade grinding, moulding) so you can customise functionality as needed. With planing widths available from 13" / 15" / 18", a feed rate of 24 ft/min, and a 4000 RPM cutter block, it delivers smooth, consistent thicknessing even on heavy or larger stock. Built on a solid, stable frame, it offers long table support for improved accuracy and minimal vibration, making it ideal for precision work and demanding environments.

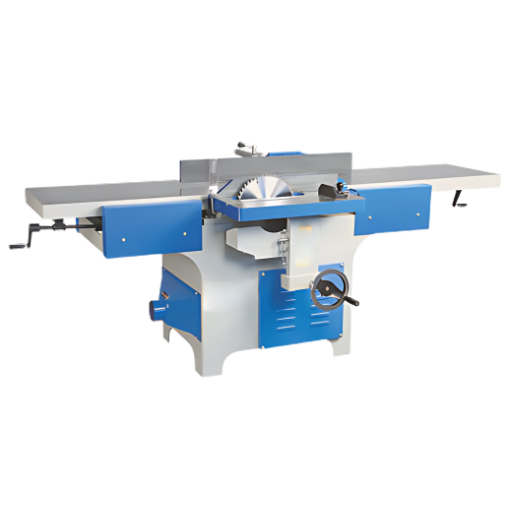

| Specification | J-302 | J-303 | J-303L |
|---|---|---|---|
| Surfacing capacity (mm / inch) | 254 / 10″ | 330 / 13″ | 330 / 13″ |
| Max planing width (mm / inch) | 254 / 10″ | 330 / 13″ | 330 / 13″ |
| Thicknessing capacity (mm / inch) | 177 / 7″ | 177 / 7″ | 177 / 7″ |
| Length of surface table (mm / inch) | 1140 / 45″ | 1220 / 48″ | 1550 / 61″ |
| Rebating capacity (mm / inch) | 12.5 / ½″ | 12.5 / ½″ | 12.5 / ½″ |
| Length of thickness table (mm / inch) | 610 / 24″ | 660 / 26″ | 660 / 26″ |
| Min. workpiece length for thicknessing (mm / inch) | 254 / 10″ | 254 / 10″ | 254 / 10″ |
| Feeding speed (ft/min) | 24 | 24 | 24 |
| Cutter block diameter (mm / inch) | 95 / 3.75″ | 95 / 3.75″ | 95 / 3.75″ |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 |
| Standard cutter block (code) | 2B | 3B-W | 3B-W |
| Circular saw table size (mm / inch) | 560 × 280 / 22″ × 11″ | 560 × 280 / 22″ × 11″ | 560 × 280 / 22″ × 11″ |
| Up/Down movement of circular saw table (mm / inch) | 75 / 3″ | 75 / 3″ | 75 / 3″ |
| Max circular saw diameter (mm / inch) | 300 / 12″ | 300 / 12″ | 300 / 12″ |
| Power required (HP / RPM) | 2 / 1440 | 3 / 1440 | 3 / 1440 |
| Approx. weight of machine (kg) | 280 | 320 | 350 |
