Auto Mould

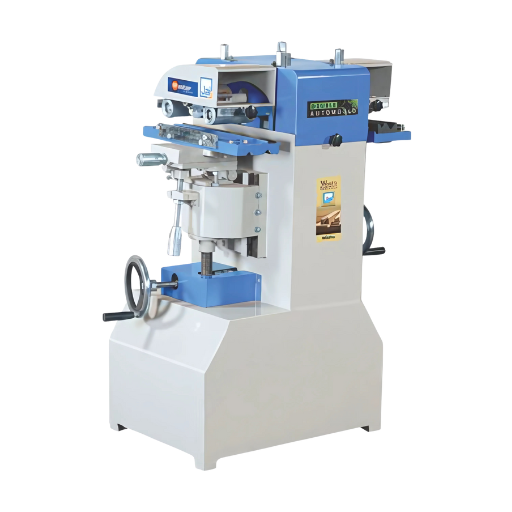

Auto Mould J-507
The Auto Mould J-507 is engineered for the mass production of straight and angular mouldings, delivering both precision and durability. Available in single and double auto mould configurations, it provides flexibility for diverse woodworking needs. The tilting work table makes it ideal for angular moulding, while the V-notch table supports accurate moulding on square workpieces. Built with rugged construction, it ensures long-lasting performance and efficiency in high-demand workshop environments.
| Specification | Main Side | 2nd Side |
|---|---|---|
| Work Table Size | 455 × 150 / 18″ × 6″ | 455 × 150 / 18″ × 6″ |
| Up/Down Movement of Table | 100 / 4″ | 63 / 2½″ |
| Longitudinal Movement of Table | 50 / 2″ | 25 / 1″ |
| Table Tilt — Degree | 15° | - |
| Feeding Speed (ft/min) | 24 | 24 |
| Moulding Block Speed (RPM) | 4000 | 4000 |
| Max. Moulding Block Width | 114 / 4½″ | 75 / 3″ |
| Moulding Block Diameter | 95 / 3¾″ | 95 / 3¾″ |
| Power Required (HP / RPM) | 3 / 1440 | - |
| Approx. Weight of Machine (kg) | 300 | |
