Special Design Machines

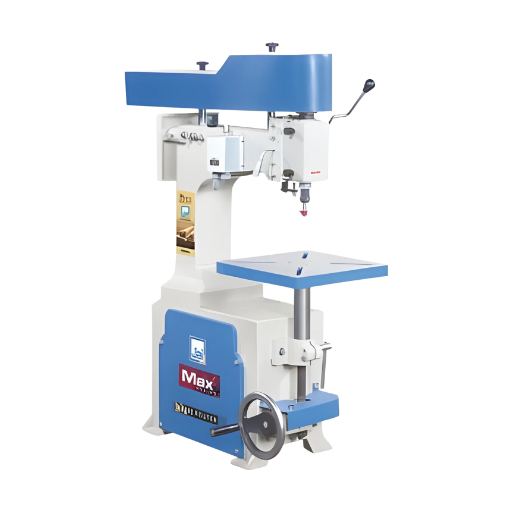

Basic Router J-901
The Basic Router J-901 is a versatile woodworking machine designed for precision routing on both regular and irregular shapes of wood. It allows users to perform different routing tasks with ease, including engraving by copying designs from a master jig. Compact and multi-utility, it is built for workshops that require flexibility, accuracy, and durability for everyday routing operations.
| Specification | J-901 |
|---|---|
| Throat Clearance | 380 / 15″ |
| Spindle Vertical Movement | 25 / 1″ |
| Base Table Size | 355 × 355 / 14″ × 14″ |
| Up/Down Movement of Table | 125 / 5″ |
| Routing Work Table Size | 610 × 420 / 24″ × 16½″ |
| Table Tilt (Degree) | 15° |
| Spindle Speed (RPM) | 11000 |
| Power Required (HP / RPM) | 1.5 / 2800 |
| Approx. Weight of Machine (kg) | 175 |
