COMBI planer

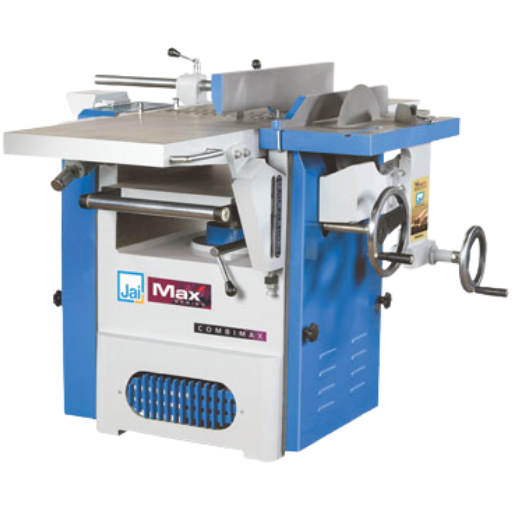

Combimax
Combimax is a powerful all-in-one combi planer that combines surfacing and thicknessing in a single heavy-duty machine. Built for professionals, it saves space and time while delivering accurate, safe, and efficient performance. With smart design features and rugged construction, it ensures flawless finishes and takes woodworking to the next level.
| Specification | J-1013 | J-1013 L | J-1018 | J-1018 LL |
|---|---|---|---|---|
| Surfacing capacity (mm / inch) | 330 / 13" | 330 / 13" | 455 / 18" | 455 / 18" |
| Max planing width (mm / inch) | 330 / 13" | 330 / 13" | 455 / 18" | 455 / 18" |
| Thicknessing capacity (mm / inch) | 177 / 7" | 177 / 7" | 177 / 7" | 177 / 7" |
| Length of surface table (mm / inch) | 1220 / 48" | 1550 / 61" | 1550 / 61" | 1830 / 72" |
| Rebating capacity (mm / inch) | 12.5 / ½" | 12.5 / ½" | 9 / ⅜" | 9 / ⅜" |
| Length of thickness table (mm / inch) | 560 / 22" | 710 / 28" | 660 / 26" | 810 / 32" |
| Min. workpiece length for thicknessing (mm / inch) | 254 / 10" | 254 / 10" | 254 / 10" | 254 / 10" |
| Feeding speed (ft/min) | 21 | 21 | 21 | 21 |
| Cutter block diameter (mm / inch) | 95 / 3.75" | 95 / 3.75" | 95 / 3.75" | 95 / 3.75" |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 | 4000 |
| Standard cutter block (code) | 2B | 2B | 3B-W | 3B-W |
| Circular saw table size (mm / inch) | 610×305 / 24"×12" | 610×305 / 24"×12" | 610×305 / 24"×12" | 610×305 / 24"×12" |
| Up/Down movement of circular saw table (mm / inch) | 75 / 3" | 75 / 3" | 75 / 3" | 75 / 3" |
| Max circular saw diameter (mm / inch) | 300 / 12" | 300 / 12" | 300 / 12" | 300 / 12" |
| Power required (HP / RPM) | 3 / 1440 | 3 / 1440 | 5 / 1440 | 5 / 1440 |
| Approx. weight of machine (kg) | 450 | 475 | 600 | 650 |
