Surface planer

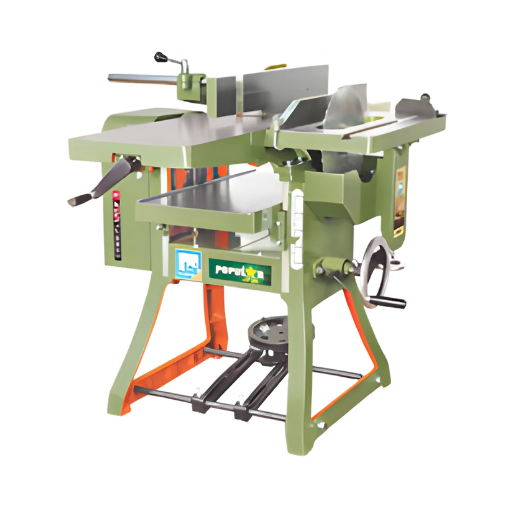

Combiplaner-S (Open Stand)
A versatile, mid-range combi planer that combines surfacing, thicknessing, rebating, and sawing all in one sturdy machine. The J-303 delivers a 13-inch (330 mm) planing width paired with a robust 7″ (177 mm) thicknessing capacity, making it suitable for a wide array of shop tasks. Long surfacing and thickness tables enhance stability for longer boards, while a fast feed rate of 24 ft/min ensures productivity. The integrated circular saw table expands functionality, offering clean cross-cuts on workpieces up to 12″ in diameter. Powered by a 3 HP motor at 1440 RPM, it strikes a balance between power and economy, and weighs around 320 kg—compact enough for smaller workshops yet durable for daily use.
| Specification | J-302 | J-303 | J-303L |
|---|---|---|---|
| Surfacing capacity (mm / inch) | 254 / 10″ | 330 / 13″ | 330 / 13″ |
| Max planing width (mm / inch) | 254 / 10″ | 330 / 13″ | 330 / 13″ |
| Thicknessing capacity (mm / inch) | 177 / 7″ | 177 / 7″ | 177 / 7″ |
| Length of surface table (mm / inch) | 1140 / 45″ | 1220 / 48″ | 1550 / 61″ |
| Rebating capacity (mm / inch) | 12.5 / ½″ | 12.5 / ½″ | 12.5 / ½″ |
| Length of thickness table (mm / inch) | 610 / 24″ | 660 / 26″ | 660 / 26″ |
| Min. workpiece length for thicknessing (mm / inch) | 254 / 10″ | 254 / 10″ | 254 / 10″ |
| Feeding speed (ft/min) | 24 | 24 | 24 |
| Cutter block diameter (mm / inch) | 95 / 3.75″ | 95 / 3.75″ | 95 / 3.75″ |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 |
| Standard cutter block (code) | 2B | 3B-W | 3B-W |
| Circular saw table size (mm / inch) | 560 × 280 / 22″ × 11″ | 560 × 280 / 22″ × 11″ | 560 × 280 / 22″ × 11″ |
| Up/Down movement of circular saw table (mm / inch) | 75 / 3″ | 75 / 3″ | 75 / 3″ |
| Max circular saw diameter (mm / inch) | 300 / 12″ | 300 / 12″ | 300 / 12″ |
| Power required (HP / RPM) | 2 / 1440 | 3 / 1440 | 3 / 1440 |
| Approx. weight of machine (kg) | 280 | 320 | 350 |
