COMBI planer

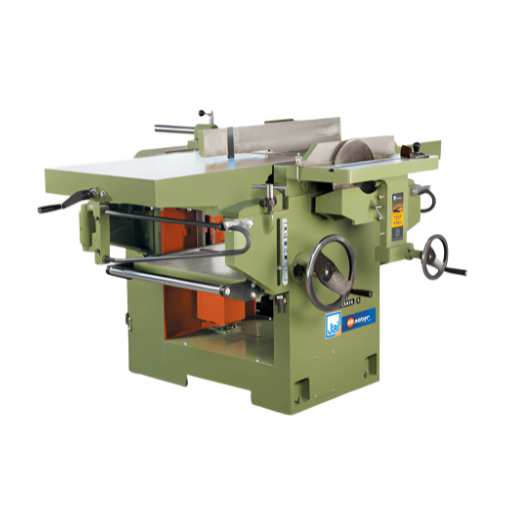

Combiplaner-S
A heavy-duty combi planer built for workshops that demand rugged strength and all-round woodworking capability. The Combiplaner-S (J-718 H / J-724 H) features a folding top, plus an anti kick-back mechanism, enhancing safety and visibility during thicknessing. With massive surfacing & planing widths of 18″ (455 mm) for the smaller model and 24″ (610 mm) for the J-724 H, you get both power and capacity. Thicknessing capacity is 12″ (300 mm), making it suitable for larger stock. Other highlights: long surfacing & thickness tables, fast feed rate (24 ft/min), high RPM cutter block, integrated circular saw table, and a powerful motor (7.5 HP) to drive heavy work. Designed for high throughput with reliability.
| Specification | Value (mm / inch, unless noted) |
|---|---|
| Surfacing capacity | 455 / 18″ / 610 / 24″ |
| Max planing width | 455 / 18″ / 610 / 24″ |
| Thicknessing capacity | 300 / 12″ |
| Length of surface table | 1830 / 72″ |
| Length of thickness table | 915 / 36″ |
| Min. workpiece length for thicknessing | 254 / 10″ |
| Feeding speed (feet per minute) | 24 |
| Cutter block diameter | 120 / 4.72″ |
| Cutter block speed (RPM) | 4000 |
| Standard cutter block – code no. | 4B-W |
| Circular saw table size | 610 × 290 / 24″ × 11.5″ |
| Up/Down movement of saw table | 75 / 3″ |
| Max circular saw diameter | 300 / 12″ |
| Power required (HP / RPM) | 7.5 / 1440 |
| Approx. weight – kg | 1100 − 1200 |
