COMBIPLANER

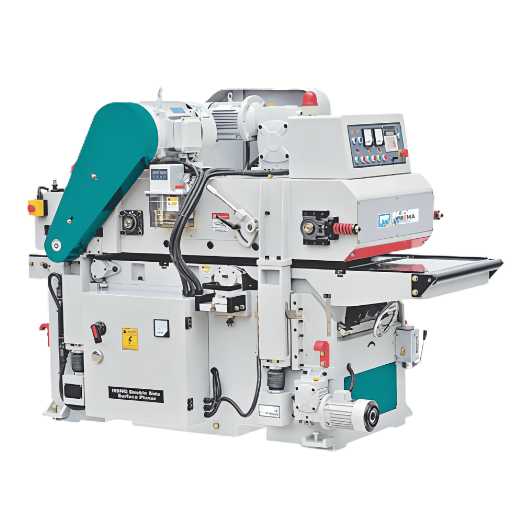

Double Side Surface Planer
The Double Side Surface Planer is designed for high-precision and high-speed woodworking, allowing both faces of a workpiece to be planed in a single pass. With a wide working capacity, heavy-duty build, and the ability to remove up to 8 mm depth in one go, it ensures superior flatness, consistency, and efficiency. Perfect for furniture makers and production units, this machine combines power, accuracy, and time-saving performance.
| Specifications | Unit | J-4430(S) | J-4630(S) |
|---|---|---|---|
| Working width | mm | 430 | 630 |
| Working thickness | mm | 200 | 200 |
| Min. working length | mm | 260 | 260 |
| Max. cutting depth (Top cutter roll) | mm | 8 | 8 |
| Max. cutting depth (Bottom cutter roll) | mm | 5 | 5 |
| Cutter roll diameter | mm | 101Φ | 101Φ |
| Spindle speed | rpm | 5000 | 5000 |
| Variable feed speed | m/min | 0 – 16 | 0 – 16 |
| Feed motor | hp | 3 | 4 |
| Top cutter roll motor | hp | 10 | 15 |
| Bottom cutter roll motor | hp | 10 | 10 |
| Feeding unit up-down motor | hp | 0.5 | 0.5 |
| Total power | hp | 23.5 | 29.5 |
