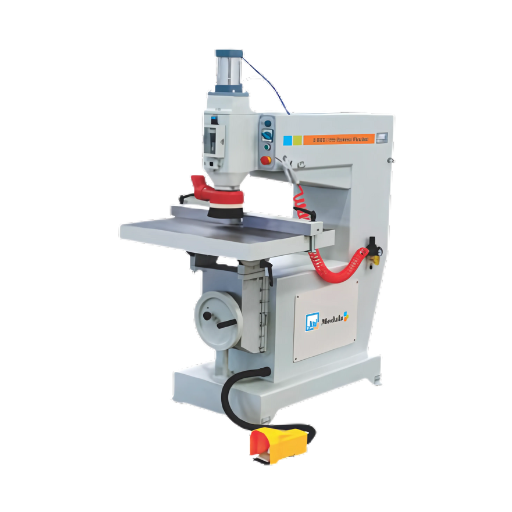

High Speed Router J-903 (Pneumatic)
The High Speed Router J-903 is a heavy-duty machine built for high-speed woodworking operations where clean, precise, and fast cuts are essential. It is ideal for applications such as routing, moulding, dovetailing, grooving, mortising, tenoning, and rebating. Equipped with balanced spindles, pedal-controlled spindle travel, and a reliable brake system for spindle up-down movement, it ensures accuracy and operator safety. Its high-speed bearings, large tilt table, and throat clearance further enhance versatility, while the rigid heavy base construction guarantees vibration-free performance and ease of control. Perfect for workshops demanding speed, durability, and precision in advanced woodworking tasks.
| Specification | Unit | J-903 |
|---|---|---|
| Work table size | mm | 800 × 600 |
| Max. cutting thickness | mm | 60 |
| Lifting travel of work table | mm | 130 |
| Maximum table tilt | degree | 45° |
| Throat clearance | mm | 750 |
| Spindle speed | rpm | 8000 / 16000 |
| Guide pin diameter | mm | 6 & 12.7 |
| Shank diameter of cutter | mm | 12 |
| Spindle actuation | — | Pneumatic |
| Compressed air requirement | kg/cm² | 1.5 / 7.0 |
| Total Power | hp / rpm | 4 / 1400 & 2800 |
| Machine dimension (L × B × H) | mm | 1500 × 900 × 1750 |
| Approx. net weight | kg | 500 |
