Tenoning Machine

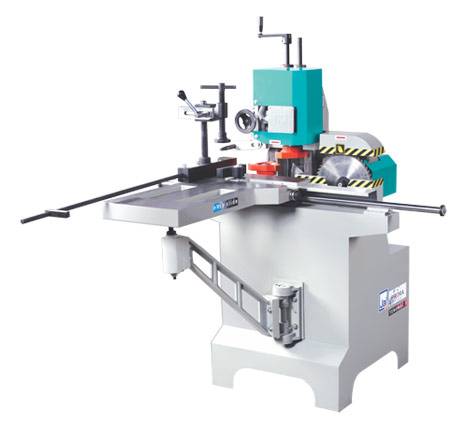

Tenoning Machine J-1919
The J-1919 Tenoning Machine is designed for precision joinery with easy sliding table movement and a heavy-duty wood clamping system to ensure accurate tenons every time. Equipped with an end-cutting circular saw unit, it delivers perfect tenon length with high accuracy and smooth operation. Ideal for furniture makers and woodworkers, this machine ensures efficiency, reliability, and superior workability in all tenoning applications.
| Specification | Unit | J-1919 |
|---|---|---|
| Table size | mm / inch | 740 × 470 / 29" × 18½" |
| Table movement | mm / inch | 800 / 32" |
| Max. Length of tenon | mm / inch | 150 / 6" |
| Max. width of work piece | mm / inch | 200 / 8" |
| Carbide cutter blocks (2 nos) | mm / inch | 6" Dia. × 1" Width |
| Top cutter block horizontal adjustment | mm / inch | 25 / 1" |
| Max. circular saw dia. × Bore | mm / inch | 254 × 19.05 / 10" × ¾" |
| Max. depth of cut of circular saw | mm / inch | 50 / 2" |
| Size of dust collection port | mm / inch | 100 / 4" |
| 2 Nos. Electric motor – Tenoning | HP / RPM | 2 / 2800 |
| Electric motor – Circular saw | HP / RPM | 1 / 2800 |
| Total Power | HP | 5 |
| Approx. weight of machine | kg | 350 |
