COMBI planer
Mini max

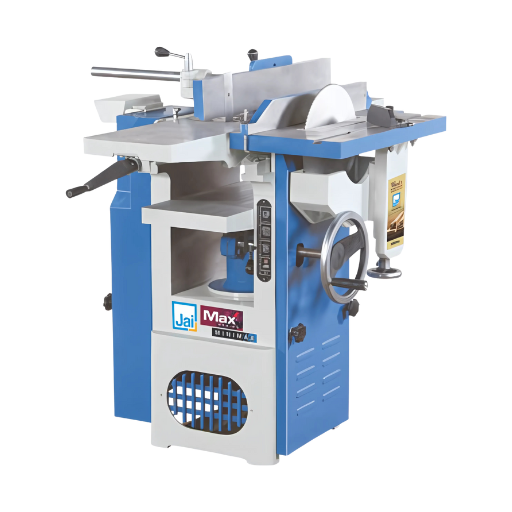

The Minimax® (Model J-1010) is a compact, fixed-top combi planer built for professionals who need dependable, multi function performance in tight spaces. It combines surfacing and thicknessing with a solid, vibration-free structure for accurate results on solid wood. A 10" planing width and 7" thicknessing capacity handle most joinery and site work needs, while a 24 ft/min feed and 4000-RPM cutter block deliver clean finishes with minimal tear-out. The integrated circular-saw table (12" max blade) adds cut-off capability without extra floor space. Minimax also accepts interchangeable attachments D (Drilling), 13-G/18-G (Blade Grinding), and M (Moulding) so one machine can drill, grind knives, and run small mouldings when needed, maximizing productivity and investment.
| Model | J-1010 |
|---|---|
| Surfacing capacity | 254 / 10" |
| Max planing width | 254 / 10" |
| Thicknessing capacity | 177 / 7" |
| Length Of surface Table | 1140 / 45" |
| Rebating Capacity | 12.5 / ½" |
| Length Of Thickness Table | 635 / 25" |
| Min. Length of workpiece for thicknessing | 254 / 10" |
| Feeding Speed (feet per minute) | 24 |
| Cutter block diameter | 95 / 3.75" |
| Cutter block speed - RPM | 4000 |
| Standard cutter block - code no. | 2B |
| Circular saw table size | 610×315 / 24"×12" |
| Up/Down movement of Cir.saw table | 75 / 3" |
| Max.circular saw diameter | 300 / 12" |
| Power required - HP / RPM | 3 / 1440 |
| Approx.wt.of machine - kg. | 350 |
