Rebato Mould

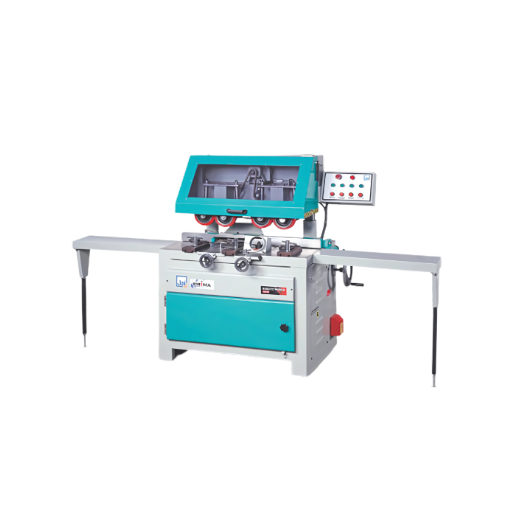

Rebato Mould J-1510(A)
The Rebato Mould J-1510(A) is a specially designed machine that combines rebating and moulding in a single operation, making it ideal for producing door frames with efficiency and precision. Rebating removes material along the edge of wood, while moulding shapes and profiles the surface — both tasks completed in one smooth process. This machine is well-suited for mass production, enabling higher productivity and better profitability by allowing the reuse of wood while delivering consistent, high-quality output.
| Specification | J-1510(A) |
|---|---|
| Min working thickness & width | 50 & 75 / 2″ & 3″ |
| Max working thickness & width | 150 / 6″ |
| Max Rebating capacity | 50 × 25 / 2″ × 1″ |
| Work table size | 1070 × 710 / 42″ × 28″ |
| Horizontal cutter fine adjustment | 8 mm |
| Horizontal circular saw dia × Bore | 254 × 25.4 / 10″ × 1″ |
| Vertical circular saw dia × Bore | 300 × 25.4 / 12″ × 1″ |
| Max Moulding cutter thickness | 25 / 1″ |
| Feeding speed of workpiece (ft/min) | 12 |
| Circular saw (Both) / Moulding speed (RPM) | 4500 / 6000 |
| Max Moulding cutter dia × Bore | 135 × 25.4 / 5¼″ × 1″ |
| Size of Dust Collection Port | 100 / 4″ |
| Horizontal & Vertical Cutter Motor Power (HP / RPM) | 5 & 3 / 2800 |
| Moulding Cutter Motor Power (HP / RPM) | 3 / 2800 |
| Workpiece Feeding Motor Power (HP / RPM) | 0.5 / 1440 |
| Total Power | 11.5 HP |
| Approx. Weight of machine | 575 kg |
