Round-end Tenoner

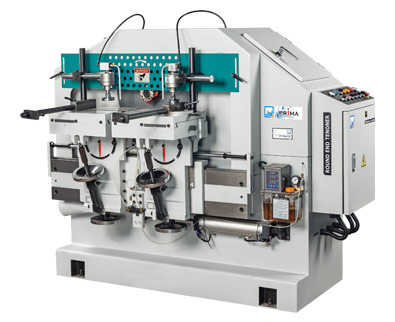

Round End Tenoner j-1941
The J-1941 Round-End Tenoner is a heavy-duty, high-tech solution built for maximum productivity and accuracy in woodworking. Designed with adjustable tenoning width and depth, it allows versatile operations to create strong joints. The machine offers flexibility with tenon axis settings that can be adjusted to horizontal, vertical, or 45°, enabling precision joinery for a wide range of applications. Robust construction and advanced features ensure consistent results and long service life.
| Specifications | Unit | J-1941 |
|---|---|---|
| Tenon width - maximum | mm | 100 |
| Tenon thickness - maximum | mm | 25 |
| Tenon depth - maximum | mm | 70 |
| Tenon diameter - maximum | mm | 25Φ |
| Spindle diameter | mm | 30Φ |
| Adjusting angle of work table (Front) | degree | 10° |
| Adjusting angle of work table (Left & Right) | degree | ±10° |
| Spindle speed | rpm | 7500 |
| Main motor power | hp | 5 |
| Feeding motor power | hp | 1 |
| Total power | hp | 6 |
