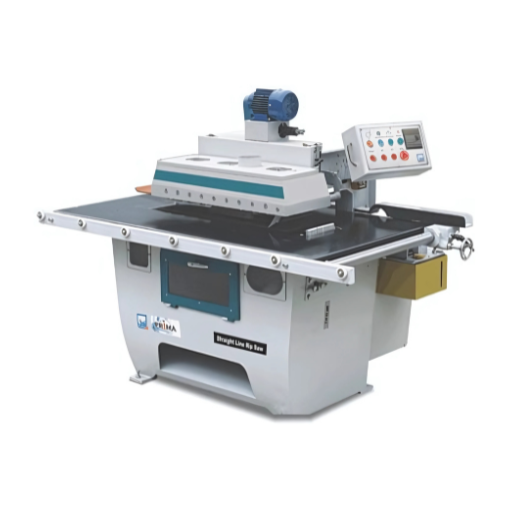

Straight Line Rip Saw
Straight Line Rip Saw
The Straight Line Rip Saw is a highly efficient and safe machine, engineered with patented designs to deliver precision cutting with maximum operator safety. Equipped with conveyor chain blocks and guide rails made from high-quality materials, it ensures smooth operation, long service life, and reduced maintenance. Its electrical lifting feed table minimizes labor intensity, while the variable frequency control optimizes feeding speed for different wood types. Patented cutter and tooth designs significantly reduce the risk of blade seizing and breakage, ensuring both reliability and operator protection. Ideal for high-volume, accurate ripping with enhanced safety compared to conventional ripsaws.
| Specification | Unit | J-1153 (Top Cutter) | J-1163 (Bottom Cutter) | J-1164 (Bottom Cutter) |
|---|---|---|---|---|
| Max. working thickness | mm | 5 – 85 | 5 – 75 | 5 – 115 |
| Min. working length | mm | 230 | 200 | 200 |
| Max. saw size | mm | 305 ⌀ | 355 ⌀ | 455 ⌀ |
| Spindle diameter | mm | 25.4 | 50.8 | 50.8 |
| Feeding speed | m/min | 13.3 – 23.3 | 10 – 30 | 5 – 22 |
| Spindle speed | rpm | 3750 | 3200 | 2920 |
| Dust collection port size | mm | 100 | 125 | 125 |
| Feeding motor | hp | 1 | 2 | 3 |
| Lifting motor | hp | 0.33 | 0.33 | 0.33 |
| Main spindle motor | hp | 10 | 15 | 20 |
| Total power | hp | 11 | 17.33 | 23.33 |
