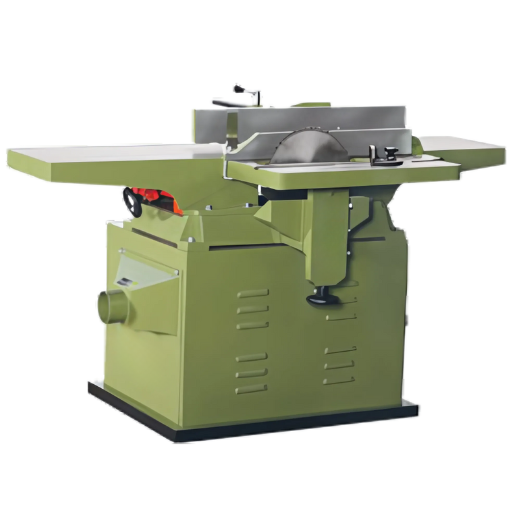

Surface Planer-S (Box Type)
A heavy-duty, box-base surface planer engineered for accurate straightening, edging and surfacing of solid wood. The rigid box frame minimizes vibration, the long cast-iron tables keep stock flat, and high-speed cutterblocks deliver clean finishes with fewer tear-outs. Available in 13-inch and 18-inch surfacing widths with multiple table lengths to suit compact shops and full-scale joinery units.
| Specification | J-127 L | J-127 LL | J-127 LLL | J-128 L | J-128 LL | J-128 LLL |
|---|---|---|---|---|---|---|
| Surfacing capacity (mm / inch) | 330 / 13" | 330 / 13" | 330 / 13" | 455 / 18" | 455 / 18" | 455 / 18" |
| Length of surface table (mm / inch) | 1550 / 61" | 1830 / 72" | 2130 / 84" | 1550 / 61" | 1830 / 72" | 2130 / 84" |
| Rebating capacity (mm / inch) | 9 / ⅜" | 9 / ⅜" | 9 / ⅜" | 12.5 / ½" | 12.5 / ½" | 12.5 / ½" |
| Cutter block diameter (mm / inch) | 95 / 3.75" | 95 / 3.75" | 95 / 3.75" | 105 / 4.15" | 105 / 4.15" | 105 / 4.15" |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Standard cutter block (code) | 3B-W | 3B-W | 3B-W | 3B-W | 3B-W | 3B-W |
| Circular saw table size (mm / inch) | 610×355 / 24"×14" | 610×355 / 24"×14" | 610×355 / 24"×14" | 610×355 / 24"×14" | 610×355 / 24"×14" | 610×355 / 24"×14" |
| Up/Down movement of circular saw (mm / inch) | 75 / 3" | 75 / 3" | 75 / 3" | 75 / 3" | 75 / 3" | 75 / 3" |
| Max. circular saw diameter (mm / inch) | 300 / 12" | 300 / 12" | 300 / 12" | 300 / 12" | 300 / 12" | 300 / 12" |
| Power required (HP / RPM) | 3 / 1440 | 3 / 1440 | 3 / 1440 | 3 / 1440 | 3 / 1440 | 3 / 1440 |
| Approx. weight of machine (kg) | 310 | 350 | 375 | 425 | 465 | 500 |
