The Four Side Moulder

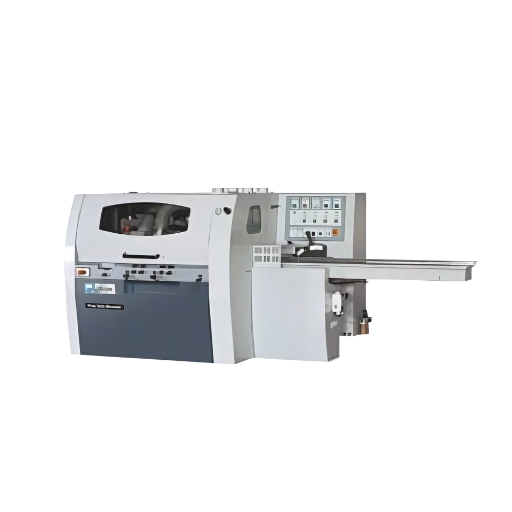

The Four Side Moulder J-4423
The Four Side Moulder J-4423 is engineered to deliver width, thickness, and shaping in a single pass, ensuring maximum efficiency and reduced production costs. Designed for heavy-duty operations, it is ideal for the mass production of door frames, window frames, and wooden flooring. Each spindle is powered by an independent motor for consistent performance and reliable power transmission. High-torque cutter block drives handle heavy-duty cutting with ease, while top feed rollers ensure smooth feeding even with thickness variations. Additional features like bed lubrication reduce friction, sealed safety enclosures lower noise levels, and improved dust extraction enhances operator safety and productivity.
| Specification | Unit | J-4423 |
|---|---|---|
| Working width (Min / Max) | mm | 25 / 230 |
| Working thickness (Min / Max) | mm | 8 / 120 |
| Feeding speed | m/min | 6 to 12 |
| Top & bottom spindle cutter dia. | mm | 120 ⌀ |
| LH & RH spindle cutter dia (Min / Max) | mm | 100 ⌀ / 180 ⌀ |
| Spindle shaft dia. | mm | 40 ⌀ |
| Top & bottom spindle cutter motor | hp | 7.5 / 5.0 |
| LH & RH spindle cutter motor | hp | 5.0 / 5.0 |
| Feeding motor | hp | 3 |
| Feed beam up-down motor | hp | 0.5 |
| Air pressure required | kg/cm² | 5 to 7 |
| Total power | hp | 26 |
