Thickness Planer

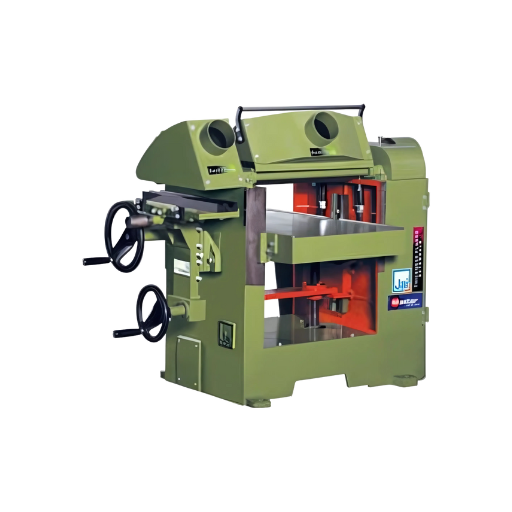

Thickness Planer ( Auto Mould )
The Auto Mould Thickness Planer is a heavy-duty machine designed for efficient thicknessing and moulding work. Built with a rugged structure and precision engineering, it ensures long-lasting durability, smooth finishing, and consistent results. These models combine high productivity with added moulding capability, making them ideal for workshops that require versatility without compromising on power or reliability. Available in two sizes—18" (J-502) and 24" (J-503) they offer superior handling of timber with uniform accuracy.
| Specifications | Unit | J-502 | J-503 |
|---|---|---|---|
| Max. planing width | mm / inch | 455 / 18" | 610 / 24" |
| Thicknessing capacity | mm / inch | 200 / 8" | 200 / 8" |
| Length of thickness table | mm / inch | 760 / 30" | 915 / 36" |
| Min. length of workpiece for thicknessing | mm / inch | 254 / 10" | 254 / 10" |
| Feeding speed | feet/min | 24 | 24 |
| Cutter block diameter | mm / inch | 95 / 3.75" | 95 / 3.75" |
| Cutter block speed | RPM | 4000 | 4000 |
| Standard cutter block — code no. | — | 2B | 2B |
| Power required (HP / RPM) | HP / RPM | 5 / 1440 | 5 / 1440 |
| Approx. weight of machine | kg | 475 | 575 |
