Thickness Planer

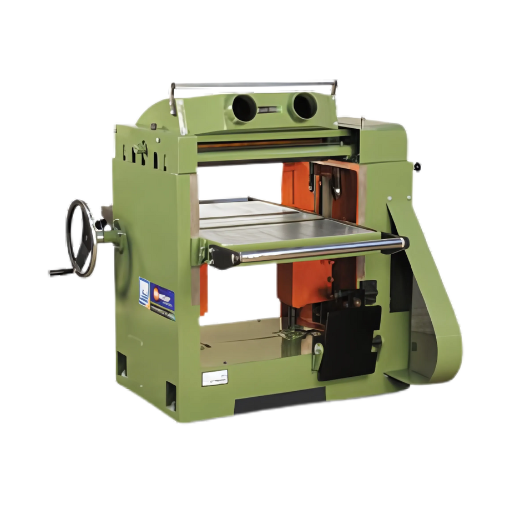

Thickness Planer (Heavy Duty)
A heavy-duty thickness planer designed for large stock and continuous operations. With a 24-inch (610 mm) planing width and 12-inch (300 mm) thicknessing capacity, it’s built for serious woodworking. The machine includes long tables for both surfacing and thicknessing, high RPM cutter block, Anti-Kick-Back mechanism, and a 7.5-HP motor. Ideal when strength, precision, and safety are equally important.
| Specifications | Unit | J-618 (H) | J-624 (H) |
|---|---|---|---|
| Max. planing width | mm / inch | 455 / 18" | 610 / 24" |
| Thicknessing capacity | mm / inch | 300 / 12" | 300 / 12" |
| Length of thickness table | mm / inch | 915 / 36" | 915 / 36" |
| Min. length of workpiece for thicknessing | mm / inch | 254 / 10" | 254 / 10" |
| Feeding speed | feet/min | 24 | 24 |
| Cutter block diameter | mm / inch | 120 / 4.72" | 120 / 4.72" |
| Cutter block speed | RPM | 4000 | 4000 |
| Standard cutter block — code no. | — | 4B-W | 4B-W |
| Size of dust collection port — Dia. | mm / inch | 100 / 4" | 100 / 4" |
| Power required (HP / RPM) | HP / RPM | 7.5 / 1440 | 7.5 / 1440 |
| Approx. weight of machine | kg | 550 | 650 |
