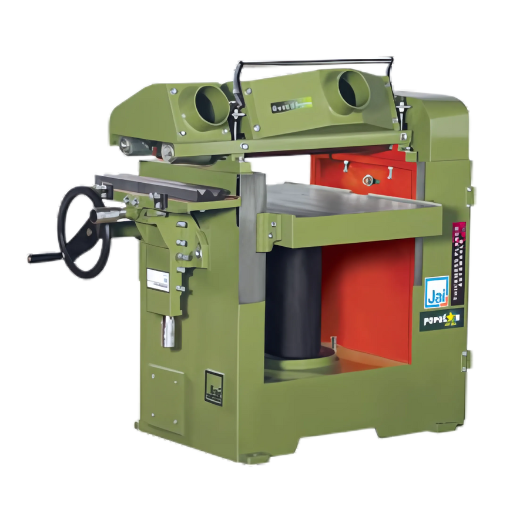

Thickness Planer
Thickness Planer j-401 & 402
The Thickness Planer (Auto Mould) is a heavy-duty woodworking machine designed for precision and durability. Built with a rugged structure, it ensures long-lasting performance while maintaining high accuracy in heavy thicknessing operations. These models feature an added moulding facility, allowing workshops to perform thicknessing and moulding tasks efficiently with reduced installation costs. Ideal for demanding woodworking environments, it provides reliability, versatility, and consistent output for professional applications.
| Specification | J-401 | J-402 | J-403 |
|---|---|---|---|
| Max. planing width (mm / inch) | 330 / 13″ | 455 / 18″ | 610 / 24″ |
| Thicknessing capacity (mm / inch) | 200 / 8″ | 200 / 8″ | 200 / 8″ |
| Length of thickness table (mm / inch) | 660 / 26″ | 660 / 26″ | 760 / 30″ |
| Min. length of workpiece for thicknessing (mm / inch) | 254 / 10″ | 254 / 10″ | 254 / 10″ |
| Feeding speed (feet per minute) | 24 | 24 | 24 |
| Cutter block diameter (mm / inch) | 95 / 3.75″ | 95 / 3.75″ | 95 / 3.75″ |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 |
| Standard cutter block (code) | 2B | 2B | 2B |
| Power required (HP / RPM) | 3 / 1440 | 5 / 1440 | 5 / 1440 |
| Approx. weight of machine (kg) | 360 | 410 | 510 |
