Thickness Planer
thickness planer j-601

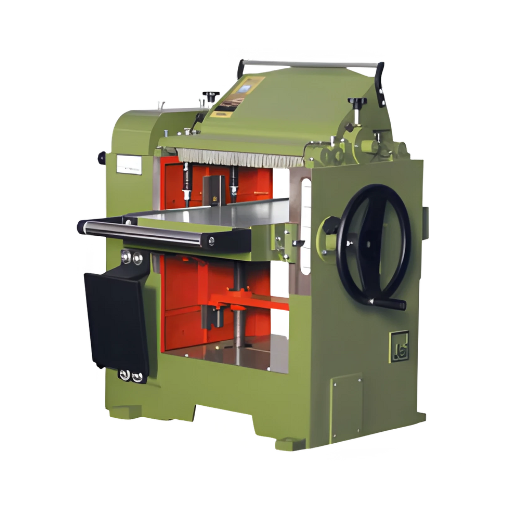

The Master Series Thickness Planer is built as a heavy-duty workhorse, designed for consistent performance and long life durability. With a rugged structure and strong cutter block, it ensures precise and smooth thicknessing even on large timber pieces. This machine is ideal for high-production environments where reliability, accuracy, and reduced downtime are critical. Available in two models J-601 (18") and J-603 (24") it offers wide planing capacities, solid feeding speed, and the power needed to handle demanding workloads with ease.
| Specification | J-601 | J-603 |
|---|---|---|
| Max. planing width (mm / inch) | 455 / 18″ | 610 / 24″ |
| Thicknessing capacity (mm / inch) | 200 / 8″ | 200 / 8″ |
| Length of thickness table (mm / inch) | 760 / 30″ | 915 / 36″ |
| Min. length of workpiece for thicknessing (mm / inch) | 254 / 10″ | 254 / 10″ |
| Feeding speed (feet per minute) | 24 | 24 |
| Cutter block diameter (mm / inch) | 95 / 3.75″ | 95 / 3.75″ |
| Cutter block speed (RPM) | 4000 | 4000 |
| Standard cutter block (code) | 3B-W | 3B-W |
| Power required (HP / RPM) | 5 / 1440 | 5 / 1440 |
| Approx. weight of machine (kg) | 425 | 525 |
