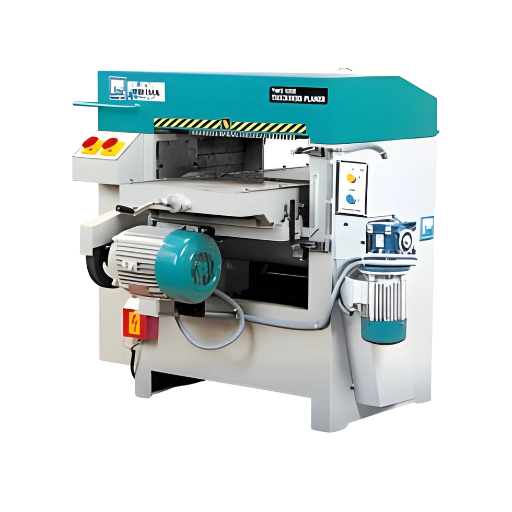

Two Side Thickness Planer
Two Side Thickness Planers Auto
A heavy-duty, high-precision two-side thicknessing machine built for production lines. It combines a robust frame with an anti–kick-back mechanism and dual in-feed rollers for positive, steady feeding. The thickness table features motorised up/down movement for quick setup and repeatable accuracy. Available in two automatic models to match throughput and workpiece size needs.
| Specification | J-2318 (Auto) | J-2324 (Auto) |
|---|---|---|
| Max. planing width (mm / inch) | 455 / 18″ | 610 / 24″ |
| Max. working thickness (mm / inch) | 150 / 6″ | 150 / 6″ |
| Min. working thickness (mm / inch) | 9 / ⅜″ | 9 / ⅜″ |
| Min. length of workpiece for thicknessing (mm / inch) | 254 / 10″ | 254 / 10″ |
| Feeding speed (feet per minute) | 24 | 24 |
| Cutter block diameter (mm / inch) | 95 / 3.75″ | 95 / 3.75″ |
| Cutter block speed (RPM) | 4000 | 4000 |
| Standard cutter block (code) | 3B-W | 3B-W |
| Size of dust collection port (mm / inch) | 100 / 4″ | 100 / 4″ |
| Upper roll motor power (HP / RPM) | 7.5 / 1440 | 7.5 / 1440 |
| Bottom roll motor power (HP / RPM) | 5 / 1440 | 5 / 1440 |
| Thickness table up-down motor power (HP / RPM) | 0.5 / 1440 | 0.5 / 1440 |
| Total power required (HP) | 13 | 13 |
| Approx. weight of machine (kg) | 650 | 750 |
